CS-ViG-UNet: Enhancing Infrared Small and Dim Target Detection with Vision Graph Convolution

Jian Lin1 (Linaom1214@mail.nwpu.edu.cn) Shaoyi Li1,3 (amlishaoyi2008@163.com) Xi Yang4 (NWPUYX@163.com) Saisai Niu2 (xinyue@sapcechina.com) Binbin Yan1 (yanbinbin@nwpu.edu.cn) Zhongjie Meng1 (mengzhongjie@nwpu.edu.cn)
1 School of Astronautics, Northwestern Polytechnical University, Xi’an, 710072, P.R.China   2 Shanghai Aerospace Control Technology Institute, Shanghai, 201109, P.R.China   3 Hypersonic Technology Laboratory, Xi’an, 710072, P.R.China   4 College of Artificial Intelligence, Xi’an Jiaotong University, Xi’an, 710072, P.R.China
BibTex Code

Abstract

Infrared small and dim target detection benefits from exploring correlations among targets, neighboring regions, and the background. However, existing methods relying on convolutional neural networks and vision transformers often struggle to capture long-range information correlations within images. To address this limitation, we propose CS-ViG-UNet, a framework that introduces vision graph convolution for infrared small and dim target detection. Our framework leverages a cyclic shift sparse graph attention mechanism to overcome the challenge of reduced expressive power. Additionally, we design the CS-ViG module to construct an effective graph structure using image patches, capturing feature information relevant to target recognition. Experimental results on public datasets Sirst AUG and IRSTD-1K demonstrate a significant improvement with F1 scores increased by 3.15% and 4.1% respectively compared to state-of-the-art methods.


Vision Graph Attention

Feature Visual

Experimental


We evaluated the effectiveness of our model in dim and small target detection tasks using two publicly available datasets: SIRST Aug and IRSTD-1K. CSViG-UNet was implemented using PyTorch 1.8. The initial learning rate was set to 0.01, the batch size was set to 8, and the seg head used was the FCN head. In the CSViG module, the parameter N was set to 6, and the graph node distance K was set to 4. The Soft IOU loss function was utilized, and the computations were performed on Nvidia RTX3090.

Quantitative Results


Mehtod
DATASET

Sirst AUG
IRSTD-1K

Precision
Recall
IoU
F1
Precision
Recall
IoU
F1

Model Drive Method
TopHat
0.7136
0.1825
0.17
0.2906
0.0719
0.2034
0.0561
0.1062

TLLCM
0.8091
0.076
0.0747
0.139
0.6898
0.098
0.0938
0.1716

LIG
0.8798
0.1587
0.1553
0.2689
0.3044
0.159
0.1166
0.2089

RLCM
0.698
0.1979
0.1823
0.3083
0.3731
0.2608
0.1813
0.307

var_diff
0.7235
0.0834
0.0808
0.1495
0.664
0.1182
0.1115
0.2007

MSAAGD
0.0716
0.2136
0.0567
0.1073
0.2061
0.2128
0.1169
0.2094

MSLoG
0.0179
0.8366
0.0179
0.0351
0.0021
0.7698
0.0021
0.0041

LEF
0.6523
0.1777
0.1623
0.2793
0.6778
0.1964
0.1796
0.3045

PSTNN
0.9441
0.1391
0.138
0.2425
0.4495
0.204
0.1632
0.2806

ADDGD
0.8876
0.0817
0.0809
0.1497
0.5659
0.0671
0.0638
0.12

WSLCM
0.8466
0.0538
0.0533
0.1012
0.6095
0.0971
0.0915
0.1676

ADMD
0.9343
0.1176
0.1167
0.209
0.5493
0.0936
0.0869
0.1599

Data Drive Method
ACM
0.8205
0.7607
0.6521
0.7895
0.682
0.722
0.5402
0.7014

AGPCNet
0.831
0.7718
0.6671
0.8003
0.6898
0.6433
0.499
0.6657

DNANet
0.8577
0.8029
0.7085
0.8294
0.7085
0.7228
0.5572
0.7156

UCF
0.8772
0.7773
0.7011
0.8243
0.1679
0.7775
0.1602
0.2762

Swin
0.686
0.8814
0.628
0.7715
0.3375
0.3101
0.1927
0.3232

HRNet
0.8062
0.8551
0.7093
0.8299
0.0715
0.6137
0.0684
0.128

Ours
0.8495
0.8627
0.7483
0.8561
0.7892
0.7054
0.5936
0.745

Qualitative Results

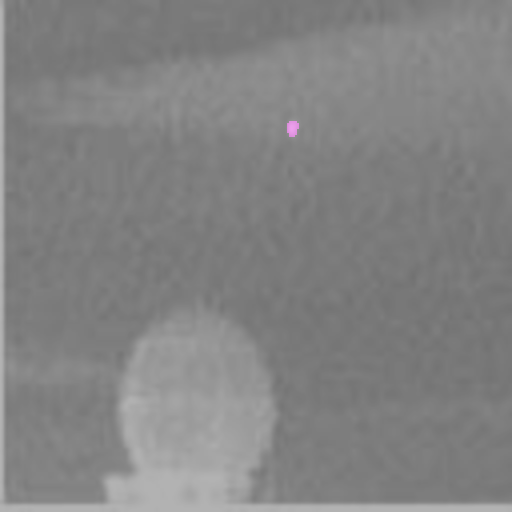

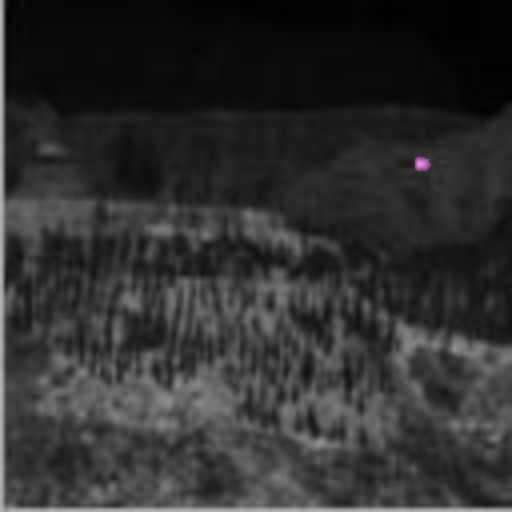

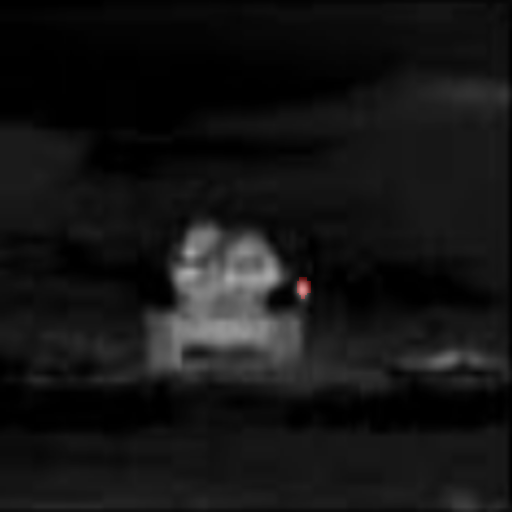

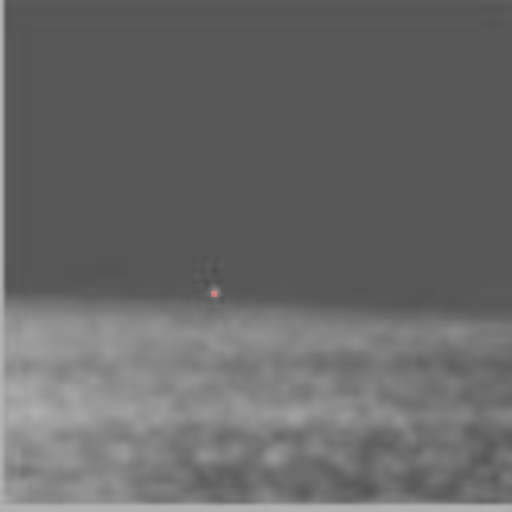

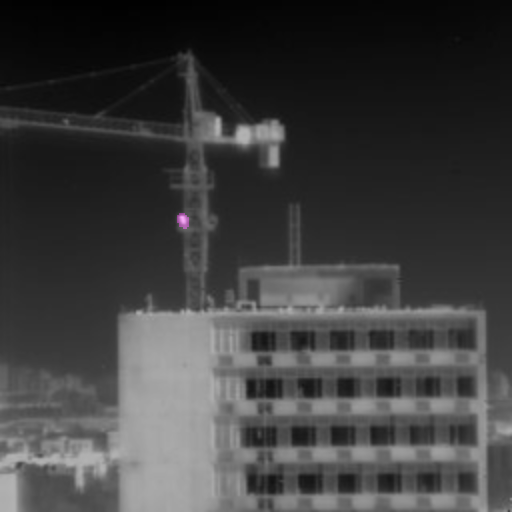

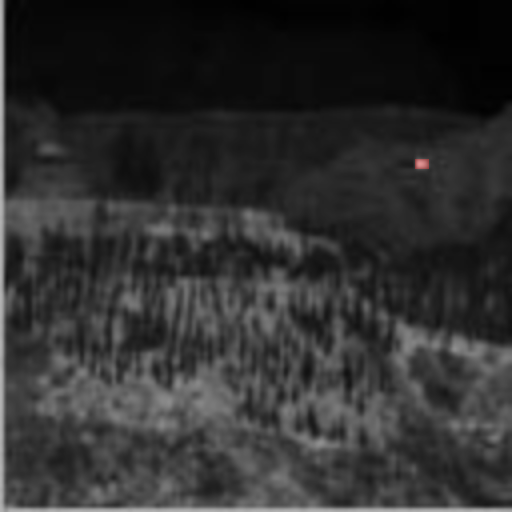

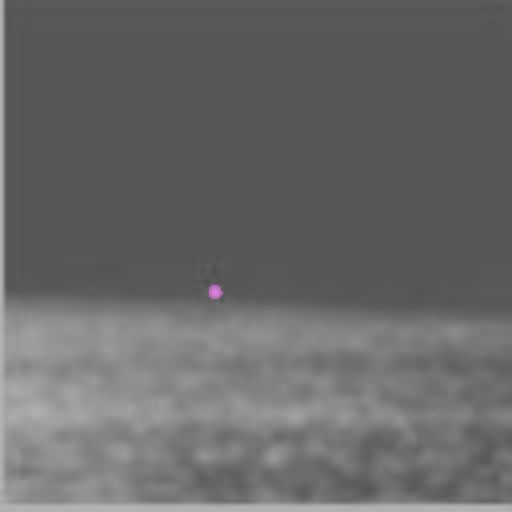

Visual Results

Cycle Shift Vision Graph


        class MRConv4d(nn.Module):
        """
        Max-Relative Graph Convolution (Paper: https://arxiv.org/abs/1904.03751) for dense data type

        K is the number of superpatches, therefore hops equals res // K.
        """

        def __init__(self, in_channels, out_channels, K=2):
            super(MRConv4d, self).__init__()
            self.nn = nn.Sequential(
                nn.Conv2d(in_channels * 2, out_channels, 1),
                nn.BatchNorm2d(in_channels * 2),
                nn.GELU()
            )
            self.K = K

        def forward(self, x):
            B, C, H, W = x.shape
            x = torch.roll(x, shifts=(-(self.K // 2), -(self.K // 2)), dims=(2, 3))
            x_j = torch.zeros_like(x).to(x.device)
            for i in torch.arange(self.K, H, self.K):
                x_c = x - torch.roll(x, shifts=(-i, 0), dims=(2, 3))
                x_j = torch.max(x_j, x_c)
            for i in torch.arange(self.K, W, self.K):
                x_r = x - torch.roll(x, shifts=(0, -i), dims=(2, 3))
                x_j = torch.max(x_j, x_r)

            x = torch.cat([x, x_j], dim=1)
            x = torch.roll(x, shifts=(self.K // 2, self.K // 2), dims=(2, 3))
            return self.nn(x)

BibTeX

@incollection{CSViG,
  title     = {CS ViG Uet: Infrared Dim and Small Target Detection based on Cycle
    Shift Vision Graph Convolution Network},
  author    = {Jian Lin},
  year      = {2023},
}
